6" High Power Slim Rectangular Flood with Refractive Lens Technology
HD72106-5F // 6 LED // White // Clear Lens
Technical Specifications
- LED: 5W OSRAM SMD

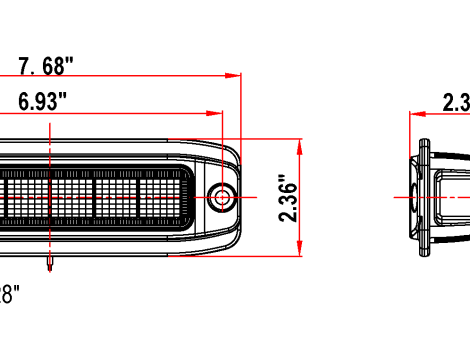

- Dimensions: 7.68" x 2.36" x 2.34"
- Volt Range: 10-3- VDC
- Amp Draw: 2.14A @ 12V, 1.02A @ 24V
- Lumen: 2260 Effective | 2520 Raw
- IP Rating: 67, 69K
Features
- Super Bright High Power LEDs
- Powder Coated Die Cast Aluminum Body
- Impact Resistant Polycarbonate Lens
- Stainless Steel Mounting Hardware
- Shielded Cable with Deutsch Connector
- Metal Breather for Moisture Dissipation
- Conformally Coated Electronics
- Working Temp: -40° to +50°C
- Color Temp: 5700K
- CISPRA 25 Class 3, ECE R10, R148 (R23) Approved (ECE R10 NO.E9*10R-06.22274, AR 148R 00 E9 1135)
