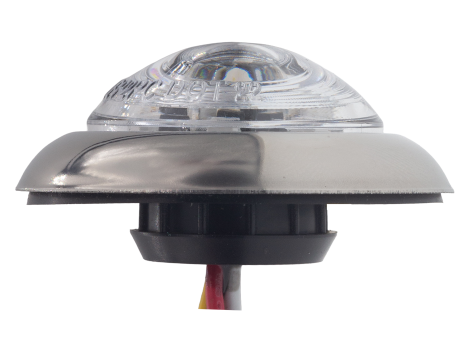

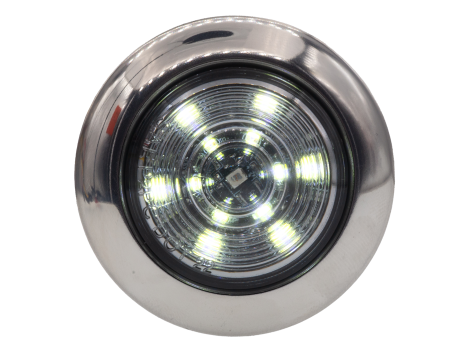

1.25" DualShift™ LED Mini Clearance Marker
HD12507RWC-SS // 7 LED // Red/White // Clear Lens
The HDL DualShift™ Series delivers the versatility today’s drivers demand. Each light is powered by our exclusive ColorFlux™ Technology — a dual-color, color-changing system that lets you shift seamlessly from work mode to show mode.
Available in popular combos like Amber/White, Red/Blue, and Red/Green, DualShift™ lights feature impact resistant polycarbonate lens, stainless steel bezel, and sealed electronics — tough enough for the road, brilliant enough for the lot.
With DualShift™ Series powered by ColorFlux™ Technology, drivers no longer have to choose between performance and personality. They get both.
Technical Specifications
- LED: 2835 SMD
- Dimensions: Ø1.82” x 0.91”
- Volt Range: 7.5 - 14 VDC
- Amp Draw: 42mA (Auxiliary)
- High: 69mA
- Low: 22mA
Features
- 1 Center Diode | 6 Outside Diodes
- Impact Resistant Polycarbonate Lens & Housing
- Conformally Coated Electronics
- Includes Stainless Steel Trim Ring & Mounting Hardware
- Foam Rubber Base Gasket

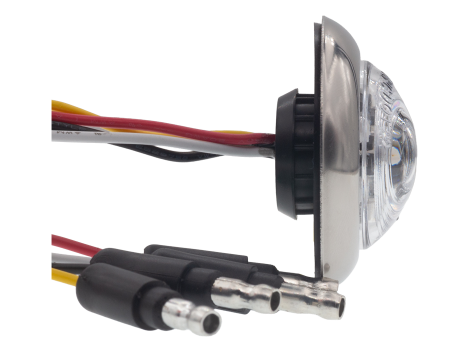

- 4 Wire: White = Ground (-) | Black = Power (+) (low circuit) | Red = Power (+) (high circuit) | Yellow = Power (+) (secondary color change circuit)
- 6” Wires to .180 Male Bullet Terminals
- SAE P2 PC | Primary Color Only
