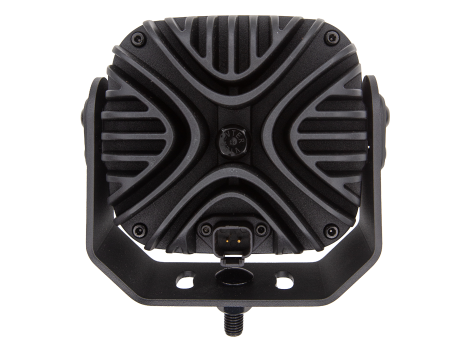

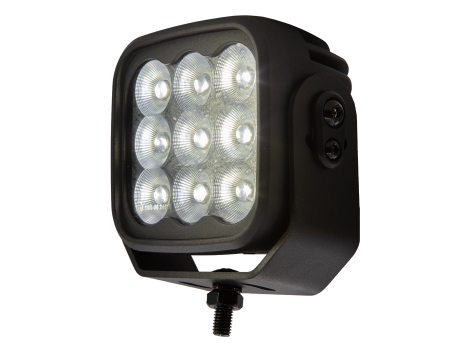

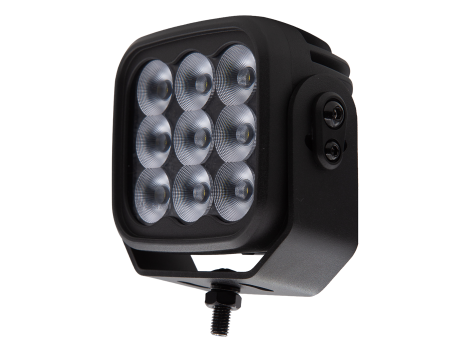

5.0" Ultra Duty Square Flood Light
HD53009F // 9 LED // White // Clear Lens
Producing 8000 effective lumens, the HD53009F is built for equipment that needs substantial light coverage in demanding operating conditions. Heavy-duty construction, a robust mounting system and ATCS® thermal management make it well suited for large equipment and applications where durability and dependable high-output performance are critical.
Technical Specifications
- LED: 10W Cree
- Dimensions: 4.96” × 4.65” × 2.95”
- Volt Range: 10–32V
- Amp Draw: 6.21A @ 12V | 3.32A @ 24V
- Lumen: EF 8000 | RAW 9000
- IP Rating: 67
Features
- ATCS® | Advanced Temperature Control System
- Frameless High Impact Polycarbonate Lens
- Black Powder Coated Stainless Steel Brackets and Hardware
- Black Powder Coated Diecast Aluminum Body
- Metal Breather for Moisture Dissipation

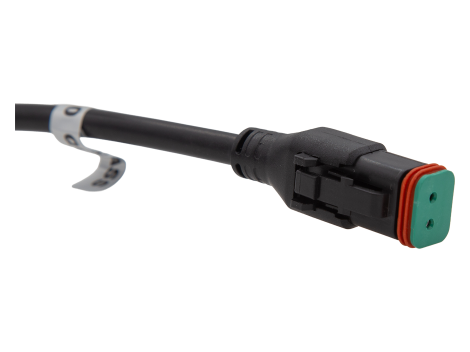

- Integrated 2-pin Male Deutsch Connector
- Includes 8” Pigtail with Mating 2-Pin Female Deutsch Connector
- ECE R10 | CISPR25 | Class 3
