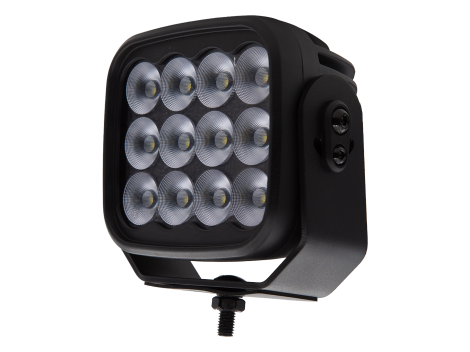

5.6" Ultra Duty Square Flood Light
HD53012F // 12 LED // White // Clear Lens
The HD53012F is the highest-output light in the Forge Series, delivering an impressive 10,600 effective lumens for large equipment and demanding work environments. Its substantial housing and heavy-duty mounting system are designed to withstand tough operating conditions, while ATCS® thermal management helps control heat and maintain consistent performance from its high-output LED system. When maximum output and extreme durability are required, this is the Forge built for the job.
Technical Specifications
- LED: 10W Cree
- Dimensions: 5.59” x 5.20” x 3.31”
- Volt Range: 10–32V
- Amp Draw: 8.50A @ 12V | 4.75A @ 24V
- Lumen: EF 10600 | RAW 12000
- IP Rating: 67
Features
- ATCS® | Advanced Temperature Control System
- Frameless High Impact Polycarbonate Lens
- Black Powder Coated Stainless Steel Brackets and Hardware
- Black Powder Coated Diecast Aluminum Body
- Metal Breather for Moisture Dissipation

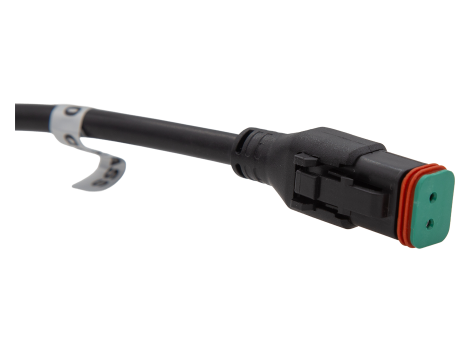

- Integrated 2-pin Male Deutsch Connector
- Includes 8” Pigtail with Mating 2-Pin Female Deutsch Connector
- ECE R10 | CISPR25 | Class 3
